Lesson 21 of 23

SVG, DXF and pieces for a CNC or laser

Export the lead lines or every piece on its own for a cutting machine, a laser or another program.

3 steps2 minChecked against the Studio on 17 October 2026

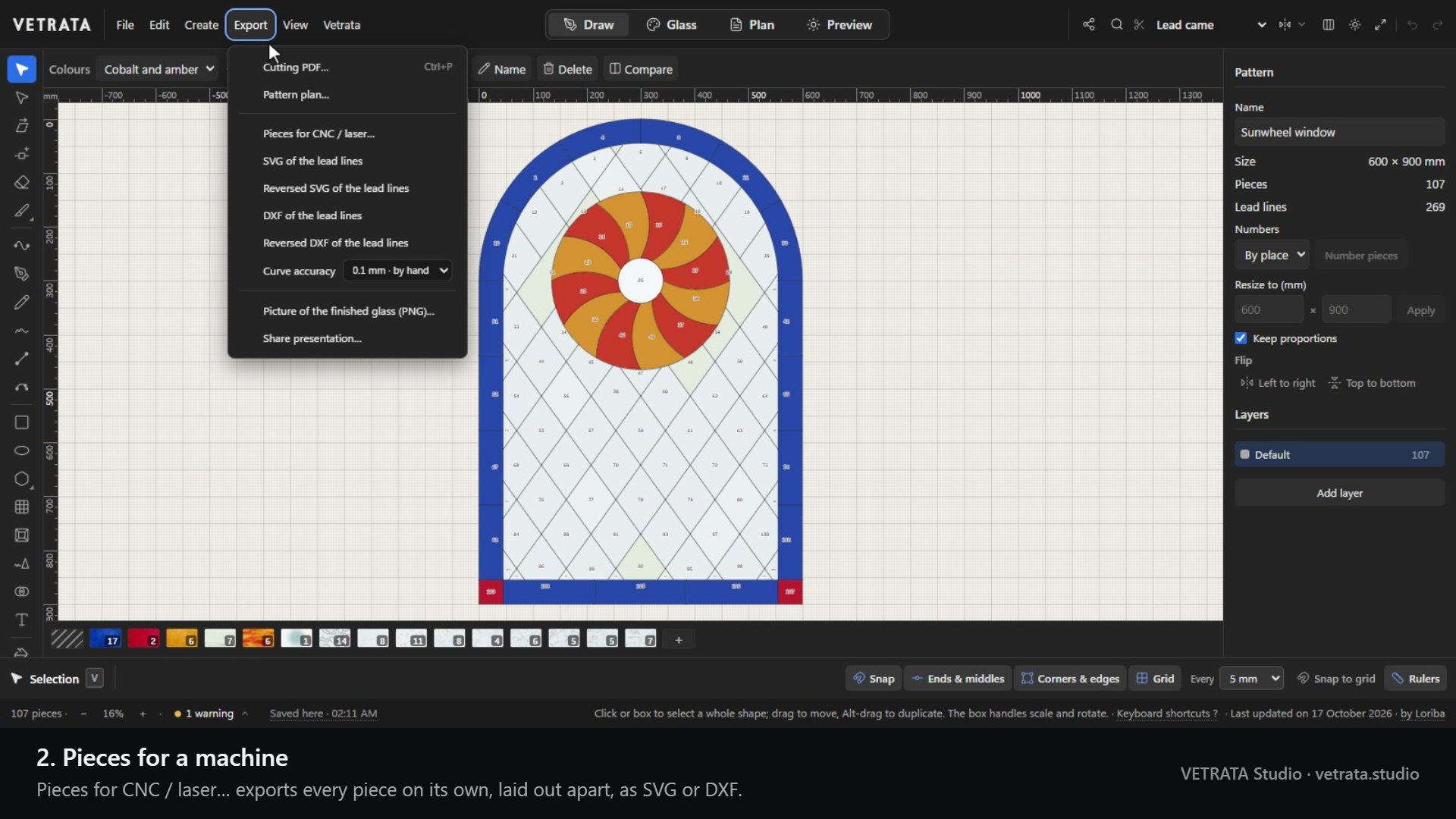

The Studio's Export menu: the cutting PDF and pattern plan, the picture of the finished glass, the SVG and DXF of the lead lines and their reversed versions, and Pieces for CNC or laser.
1 of 3 The lead lines SVG of the lead lines and DXF of the lead lines export the pattern's lines at full size, for another drawing program or a plotter.

The Export menu makes every file that leaves the Studio: what you print, what you share, and what a machine cuts.

  1. 1

    The lead lines

    SVG of the lead lines and DXF of the lead lines export the pattern's lines at full size, for another drawing program or a plotter. The reversed versions are turned over for foil work.

  2. 2

    Pieces for a machine

    Pieces for CNC / laser… exports every piece on its own, laid out apart, as SVG or DXF.

    The pieces' outlines are hairlines, the way laser software expects to find a cut.

  3. 3

    Pictures and plans

    Picture of the finished glass (PNG)… saves the panel as an image, and Pattern plan… and Cutting PDF… make the printed sheets.
